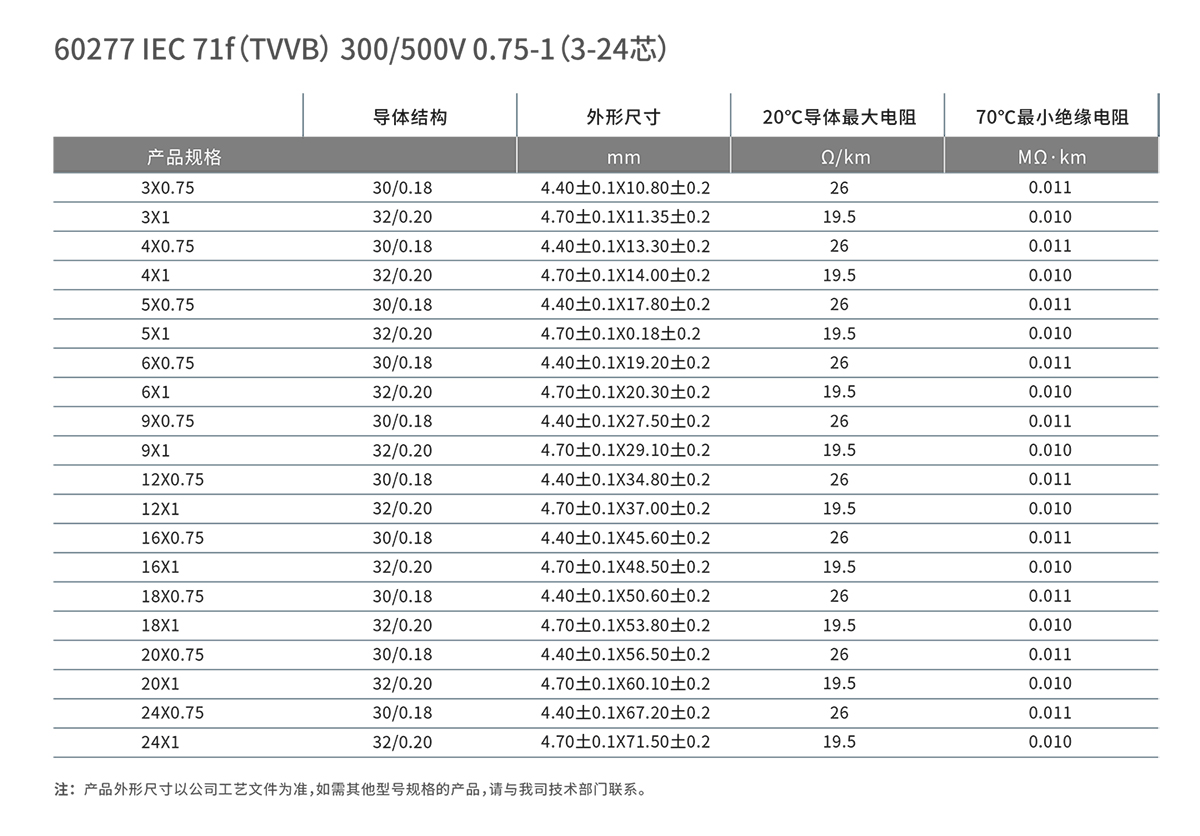

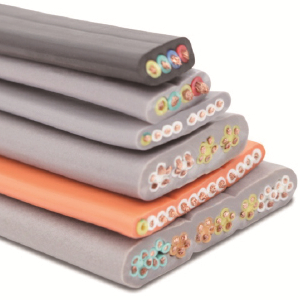

60227 IEC 71f (TVVB) Polyvinyl chloride insulated flat elevator cable with polyvinyl chloride sheath |
||
|
|
||
|
|
|
|

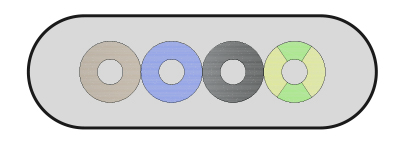

product mix Conductor: Twisted copper conductors conforming to GB/T3956 5th or 6th DIN VDE 0295 and IEC 228 standards Insulation: PVC/D PVC insulation Core structure: After insulating cores are twisted, the groups are arranged in order. Sheath: PVC/ST5 special sheath grey Application standard: GB/T5023 Characteristic: Good flexibility, good oil resistance and moisture resistance, excellent wear resistance, and bearing large mechanical external force. technical parameter Rated voltage: U0/U 300/500V Test voltage: insulation thickness < 0.6mm: 1500V, finished product test: 2000V Minimum bending radius: The permissible bending radius of cable laying and installation sequence should not be less than 6 times of the small side of cable. Use temperature: Fixed laying: - 15 C to + 70 C |
|
|
|
|
|
 |
||
